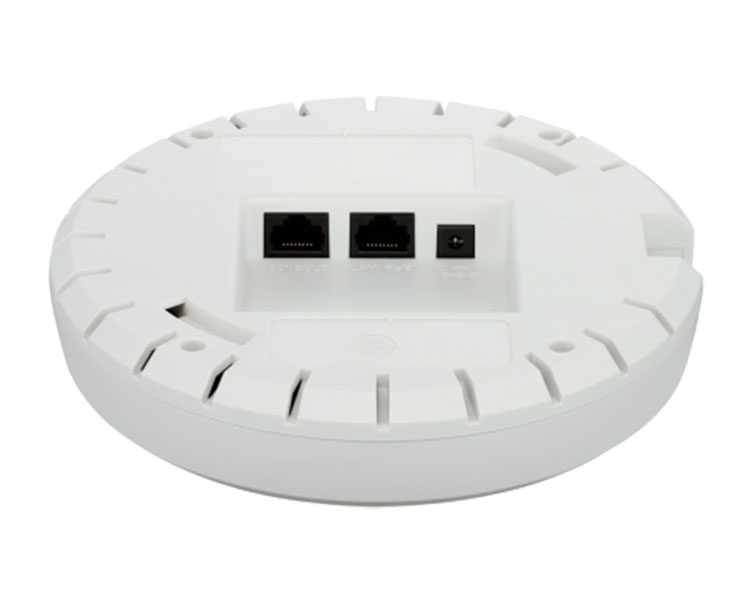

The DWL-2600AP is an entry level indoor Access Point (AP) designed to meet the business needs of companies of all sizes. Its low profile and sleek design means it can be deployed in a variety of business environments. The AP can work in standalone mode for initial deployment and then augmented by adding D-Link’s Unified Switch solutions like the DWC-1000 Wireless Controller or the advanced DWS-3160/DWS-4026 Unified Switch Series to provide centralised wireless LAN management.

 SYSTEM

Wi-Fi Interface

• 802.11b/g/n 2.4 GHz

Lan Interface

• 10/100 Fast Ethernet

Console

• RJ-45

Antenna

• 2x2 MIMO embedded antenna

Power Method

• IEEE 802.3af Power Over Ethernet or external power adapter

Wireless Frequency

• 802.11b/g/n: 2.4 GHz - 2.4835 GHz

Data Transfer Rate

• 802.11n: 6.5 Mbps - 300 Mbps
• 802.11g: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps

System Management

• HTTP/HTTPS Web-based User Interface
• SNMP, SSH, Telnet Command Line

SECURITY

SSID

• 16 SSID
• Station Isolation

Wireless Security

• WPA Personal/ Enterprise
• WPA2 Personal/ Enterprise

Detection & Prevention

• Rogue and Valid AP Classification

Authentication

• MAC Address Filtering
• 802.1x

PHYSICAL & ENVIRONMENTAL

Power Adapter

• Input: 100 to 240 VAC

Power over Ethernet

• 10/100 Mbps PoE (802.3af) input

Stand-Alone Mode

• WPA/WPA2 Security
• Rogue AP Detection
• Station Isolation
• MAC Address Filtering
• AP Load Balancing Setup
• WDS
• AP Clustering
• QoS/WMM
• Local Storage Configuration

Managed Mode
(Managed by D-Link Wireless Switch/Wireless Controller)

• Centralized Management
• Centralized Firmware Dispatch
• Visualized AP Management Tool
• Auto-Power Adjustment
• Dynamic Auto-Channel Selection
• L2 Fast Roaming
• L3 Fast Roaming
• Captive Portal
• WPA/WPA2 Security
• Rogue AP Detection
• Rogue AP Mitigation
• WIDS
• Station Isolation
• MAC Address Filtering
• AP Load Balancing Setup
• WDS
• QoS/WMM

Dimensions

• 160 x 160 x 45 mm (6.30“x 6.30” x 1.77")

Weight

• 240g (0.53 lbs)

Operating Temperature

• 0° to 40°C (32°F to 104°F)

Operating Humidity

• 10% to 90% non-condensing

EMI/EMC/RF

• FCC Class B
• CE Class B
• C-tick,
• IC
• VCCI
• NCC
• TELEC
• Wi-Fi®

Safety

• cUL
• LVD (EN60950-1)
• EN60601-1-2
